Max: 170 m (558 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance
Two wooden walls with thickness < 10 cm (4”) One concrete wall with thickness < 20 cm (7”)
Interfaces
Gigabit RJ45 Ports
1
Ethernet Notes
Accepts PoE powering
LED
System
Physical Buttons
Reset Button
Power Input
DC Jack
PoE via Ethernet Port
Power
Power Methods
DC
Passive PoE
802.3at/af PoE
DC Input
12V 1A
Passive PoE Input
24 ~ 57V
Power Adapter

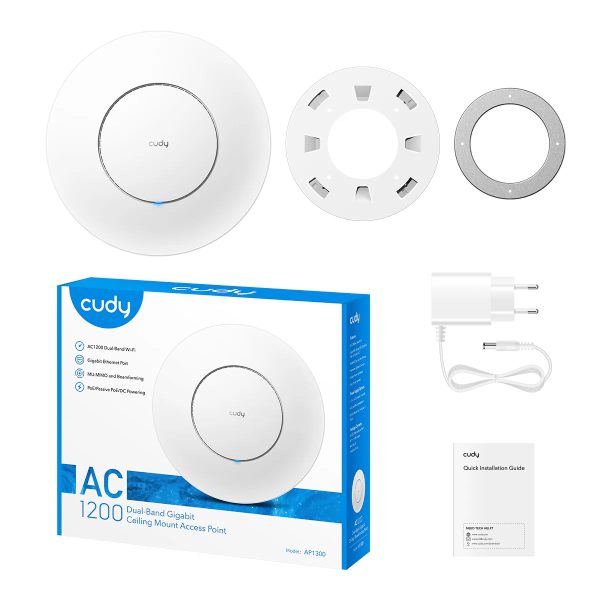

AP1300 | DC Adapter in the box: Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC AP1300_P | PoE Adapter in the box: Input: 100 ~ 240 V, 50/60 Hz AC Output: 48V Passive PoE
Max Power Consumption (W)
Max (PoE): 11 W Max (DC): 7.5 W
Idle Power Consumption (W)
4.008 W
